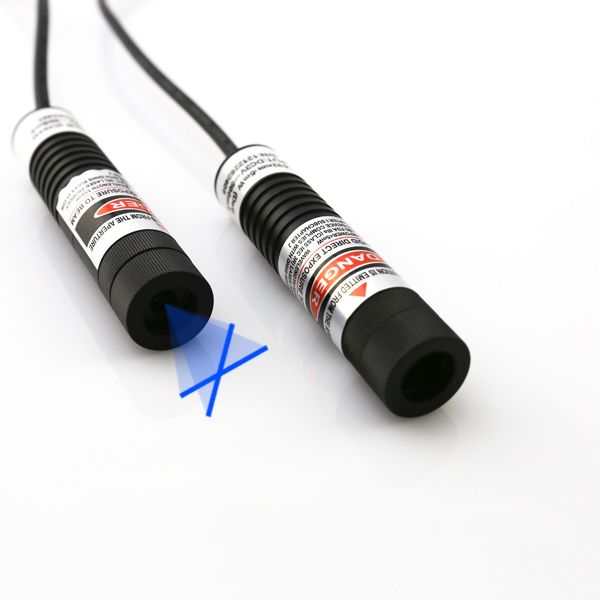

What would you like to do to make ultra clear and precise cross line projection for those of automation fields? It is not easy to reach with any prior cross line drawing or printing work at all, but having to be substituted by an advanced laser diode tech applied tool of a 445nm blue crosshair laser module. It keeps work with intense and powerful blue laser light emission directly from an import laser diode. Configured with a qualified optic lens inside a durable housing tube, connected with an AC/DC adapter, this direct diode emission made blue cross laser alignment always makes sure of precise and stable cross line positioning results. It keeps work with high orthogonal accuracy blue cross lines projection, controllable line width, minimal positioning deviation. Owing to its resistant to electromagnetic interference and vibration, it is always adaptable to high-frequency operation of automated equipment, and maintains a stable reference point over long-term operation.

Usually 445nm blue crosshair laser module gets constant electric power source from an AC/DC adapter, thus it always takes the lowest time and energy consumption to make continuous blue vertical and horizontal lines generation in distance easily. Employed by an import 445nm blue laser diode within 50mW to 100mW and 150mW to 500mW, the projected blue laser light has high visibility on various materials, including metal, plastic, circuit boards etc, remaining clearly visible even in bright light and dusty environments in automated workshops, with no blind spots. When blue cross laser alignment gets easy installation or integration onto any automation machine or device, within the lowest time and energy consumption, it makes sure of immediate startup, allowing seamless integration with automated equipment control systems so as to achieve synchronized operation with equipment start-up, shutdown, and operation, improving production line efficiency.

Configured with a qualified glass coated lens with 10, 15 and 110 degree fan angles and adjustable focus optic lens design in front of laser beam aperture, 445nm blue crosshair laser module generates highly precise and fine two perpendicular blue lines within 0.5 meter to 6 meters lengths, and freely adjusted cross line thickness. The precise benchmarks effectively avoid issues such as incorrect or missing component installations and misaligned placement, reducing defective products in automated production and improving the overall yield rate of the production line. Being made with ultra compact size tube, featured by low power consumption, this blue cross laser alignment supports for wide voltage input allow for direct integration into various automated equipment, robotic arms, and assembly line racks. Both new and existing production lines can be retrofitted at low cost. It enables long continuous working life, is resistance to high and low temperatures, and is suitable for 24/7 uninterrupted operation of automated production lines, reducing replacement frequency and maintenance costs.

Applications in automation fields:

Automated Assembly Line Alignment: 445nm blue cross line laser module provides orthogonal references for component bonding and snap-fit connections in 3C electronics and home appliance assembly lines, suitable for mobile phone screen bonding, circuit board insertion, and home appliance component assembly.

Automated Sorting and Loading/Unloading: In sorting equipment and robotic arm loading/unloading scenarios, calibrates the material placement reference position and gripping point, ensuring accurate gripping by the robotic arm and orderly sorting and placement of materials.

Precise Calibration in Electronic Manufacturing: In SMT (Surface Mount Technology) and semiconductor packaging processes, calibrates the circuit board reference coordinates, assisting in precise alignment of the placement head and packaging head, avoiding component misalignment and cold solder joints.

Automated Welding Positioning: In automated laser welding and TIG welding equipment, calibrates the weld seam position and welding path reference, ensuring accurate welding points and improving welding consistency.

Automated Inspection Assistance: 445nm blue alignment laser is used in conjunction with vision inspection equipment, the crosshairs serve as a positioning reference to define the inspection area, assisting in the identification of product size deviations and assembly defects, thus improving inspection accuracy.

Logistics Automation Assistance: In intelligent warehousing and logistics sorting lines, 445nm blue cross line laser calibrates the placement reference for goods and the boundaries of sorting channels, assisting in AGV cart path calibration and accurate palletizing.
