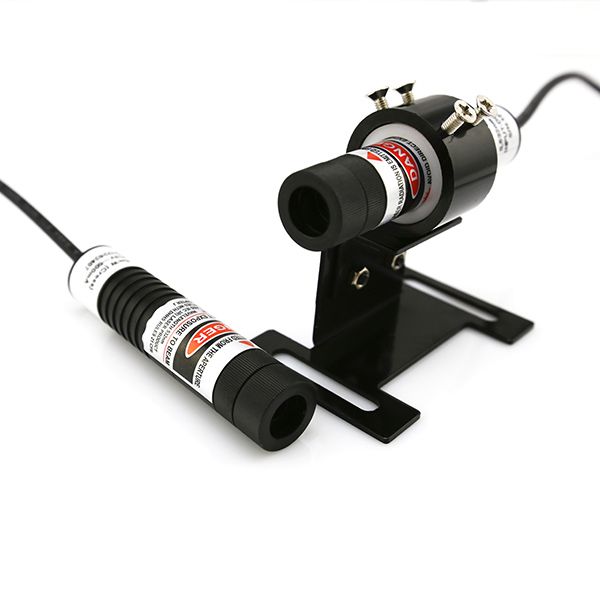

Whatever kind of working surface users are in serious need of clear, precise and bright dot indication for precision tool positioning work, either it is pointing at close or long distance, it makes a good job to operate a high energy density beam emitted tool of a 650nm red laser diode module. It projects a high-brightness, fine red dot as a reference positioning light source for precision tooling fixtures, assembly stations, and mold stations. Being made with ultra compact size and durable structure made metal housing tube, 650nm red dot laser alignment is fixed to tool supports, achieving precise workpiece dot positioning and tool alignment calibration, ensuring consistency and accuracy in batch processing and assembly.

Being made with an import 650nm red laser diode within 5mW to 100mW and higher power range of 150mW to 500mW, equipped with a metal heat sink cooling system inside a sealed metal housing tube, it is always bearing wide range operating temperature, moving, shocking or calibration etc. It is installed easily with assembly line stations, and mold frames, using the laser dot to precisely mark the work piece's center reference, assembly origin, and alignment marks. No manual measurement or drawing is required. The red light emitted from a 650nm red dot laser alignment allows for rapid placement and correction of the workpiece position, achieving precise workpiece positioning and tooling alignment calibration, ensuring consistency and accuracy in batch processing and assembly.

When 650nm red laser diode module applies a qualified glass coated lens and adjustable focus optic lens designs in front of laser beam aperture, it enables highly precise dot positioning onto different raw material surfaces. The 650nm red light dot is round and small with a small divergence angle, resulting in high positioning accuracy, suitable for the micro-alignment requirements of precision tooling. After quite easy roast of laser beam aperture part, 650nm red dot laser alignment gets immediately focused red laser light concentration, converts into high red light recognition, clearly visible in indoor lighting and industrial workshop environments, requiring no additional light shielding. It always replaces manual stringing, measuring, and marking, quickly aligning benchmarks and saving alignment time.

Whatever output power it is selected, 650nm red laser diode module keeps work with low light decay and temperature drift, shock and interference resistant, ensuring the spot position remains unchanged during long-term tooling operation. It can be easily integrated and fixed, easily embedded in various tooling fixtures and automated frames. Owing to its high precision dot generation in mass production, red alignment laser just reduces human error in alignment and improves product yield. It just makes sure of low power consumption, low heat dissipation, and long serving lifetime, applicable for long term, and uninterrupted tooling positioning in factories.
