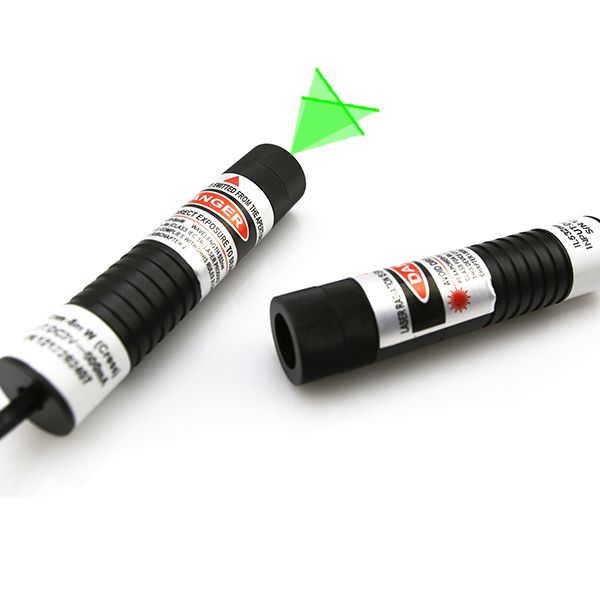

Whenever users are trying to make highly clear cross line guidance in machine tool machining, not able to rely on any previous manual line drawing or printing work, but gradually replaced by advanced laser diode tech applied tool of a 515nm green cross line laser module. It applies an import 515nm green laser diode and a qualified optical lens with different fan angles. Together with constant power source supply and basic use of thermal emitting system inside its durable metal housing tube, it resists machine tool vibration, workshop dusts and high temperature interference, this 515nm green cross laser alignment is specially designed for precise pre positioning in machine in mechanic scenarios, such as grinding machines, machining mechanical centers, CNC drilling machines and grinding machines, etc.

Usually green light emitted from a 515nm green cross Line laser module is significantly brighter than red light and superior to ordinary532nm green light. It applies an import 515nm green laser diode within 50mW to 200mW as its laser beam emitting source, even under strong machine to lighting, cutting dust and moisture etc. In continuing cross line alignment conditions, the green cross line remains sharp and clear, making observation effective for operations. This 515nm green cross laser alignment is equipped with a metal heat sink cooling system inside its durable metal housing tube. Together with its strict laser beam stability tested up to 24h, this green laser is always working well with high level of laser beam stability, no decay light green cross line generation in continuous use.

Being made with the durable anodized aluminum housing tube without DPSS crystal lens, 515nm green cross line laser module makes sure of no normal drift detects, the crosshair emission remains unchanged and the line width remains accurate even under the high temperatures and mechanical vibrations generated by prolonged continuous machine operation. Frequent machine stops for recalibration are unnecessary, making it suitable for 24h missionary production. Employed by a qualified glass coated lens with different fan angles of 10, 15 and 110 degrees, together with adjustable focus optical lens, 515nm green cross laser alignment maintains high optical orthogonal accuracy and fine controllable line widths, allows for precise control of centering errors, hole position, deviation and cut allowances, effectively reducing machine mechanical deviation and dimensional inconsistencies, and lowering scrap and rework cost.

After its proper use of output power and optical lens fan angle, this 515nm green cross line laser module enables freely adjusted cross line thickness so as to achieve increasing accuracy operation. It is compatible with metal workpieces, no glare from high reflective materials for machining workpieces, such as steel, stainless steel and aluminum alloy. This design minimizes the glare from high reflective materials, resulting in no glaring cross lines, no diffuse reflection or ghosting, and a clearer image. This ultra compact size 515nm green alignment laser always enables easy integration, easy mounted onto various machine tool retrofits. The compact module structure and flexible installation methods allows for quick mounting on machine to posts frame and gantry beam. Both new and old Machine tools can be easily retrofitted without significant structural changes resulting in low retrofit costs. It makes strong adapt ability to highly reflective workpieces, perfectly adopts, adapts to the alignment to setting and reference positioning needs of various CNC machine tools. This green alignment laser can significantly shorten clamping time, improve machine mechanical accuracy, and reduce workshop defects rate and overall production cost.
