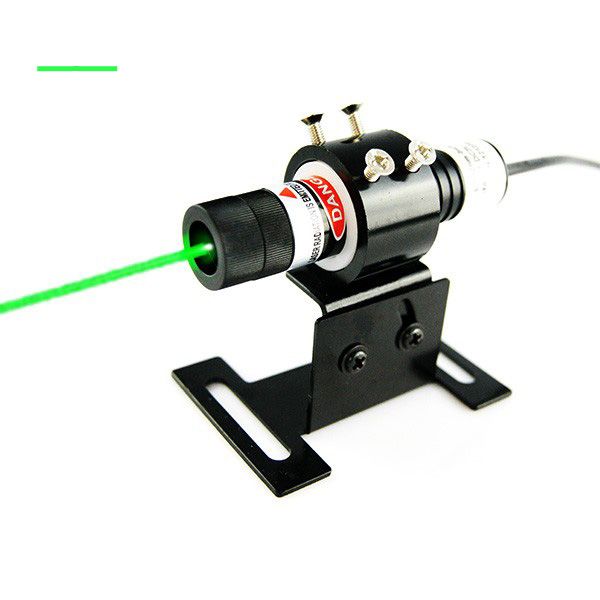

Whenever engineers and professionals are trying to make ultra clear, fine and precise line indication for a lot of industrial and high tech work fields, either pointing at close or long distance, engineers and professionals would prefer to apply a highly bright light emitted tool of a 515nm green line laser alignment. It applies an import laser diode and a qualified optic lens with different fan angles inside a durable metal housing tube. Usually 515nm green light matches the peak sensitivity of the human eye, which is clearly visible in daylight, outdoors, or high-intensity light environments where red light tends to "disappear." under operation with correct use of output power and optic lens fan angle, direct diode emission made 515nm green laser module is able to make continuous green light and green line generation onto multiple working surfaces constantly.

Being made with an import 515nm green laser diode within 50mW to 100mW and 150mW to 200mW output power, 515nm green line laser alignment also gets constant power source from an AC/DC adapter. After accepting wide range electric current of 100V to 240V operating voltage, converted into 5V, 9V, 12V 1000mA DC power supply, it is easily projecting highly bright and intense forest green laser light at long extending distance. Within a quite long range work distance, 515nm green laser line generator gets high contrast performance, maintaining a fine line of 1mm to 2mm at a distance of 25 meters with ±0.3 mm straightness, ideal for long-span positioning. Even though line projecting work is processing under high lighting, it still maintains ultra clear and bright green line generation as expected.

Based on the adoption of a direct semiconductor laser diode and a qualified optic lens in type of glass coated lens or separate crystal lens, 515nm green line laser alignment is performing well with high quality Gaussian beam or non Gaussian distribution green beam emission at long extending distances. It eliminates the thermal drift and noise associated with 532nm frequency-doubled lasers, produces a uniform beam spot with sharp edges and adjustable line width (0.3 mm at 10 cm). When it gets low beam divergence angle of less than 0.5mard, this green laser module ensures uniform line quality over long distance, avoiding the issue of thick centers and thin ends, making it suitable for high-precision measurement and processing.

Within wide operating temperature range and strong interference resistance, 515nm green line laser alignment is always performing well with high beam stability and reliability. It gets built in temperature control and APC, ACC circuity, ensures long-term power and wavelength stability with a continuous service life exceeding 8,000 hours. When it gets good heat dissipation, this green alignment laser always maintains a stable, drift-free line even in environments with dust, vibration, or high reflectivity. After its easy installation or integration with equipment or device, it provides users excellent line positioning results for industrial cutting, welding and marking works easily and precisely.
