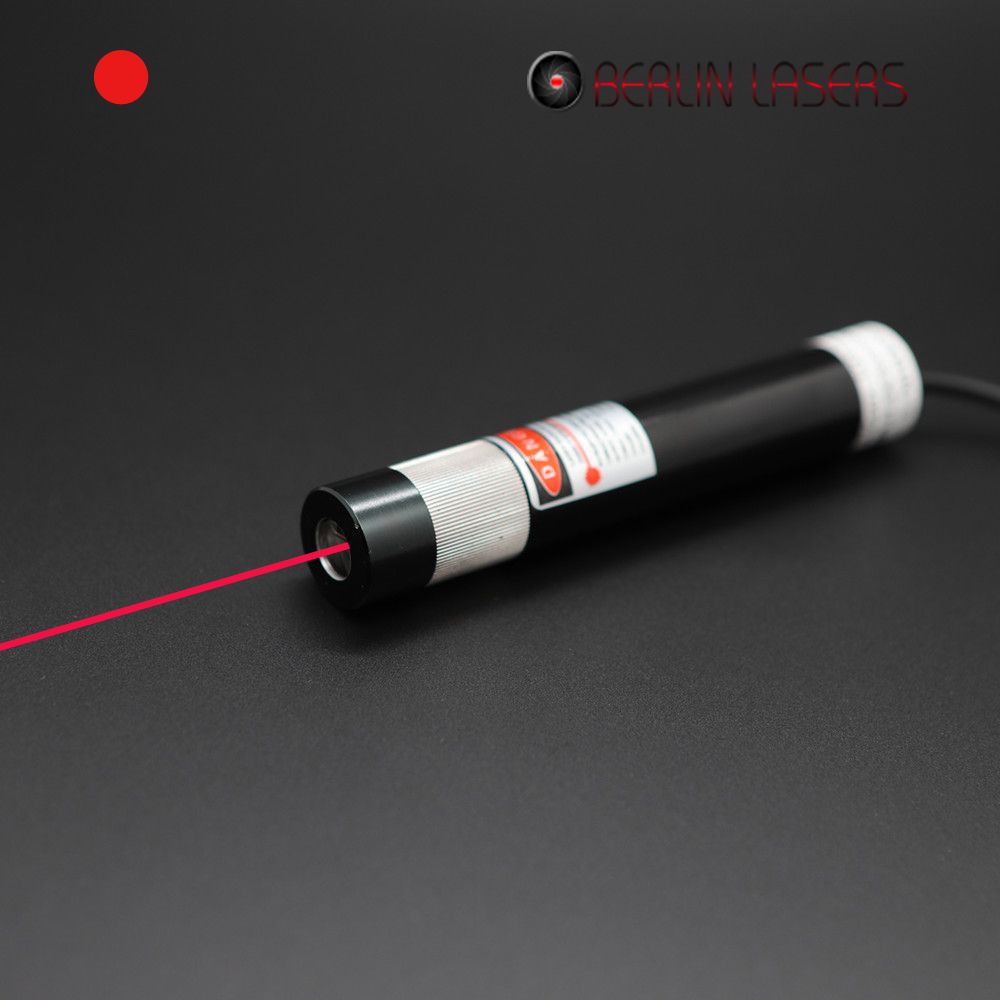

Whenever precise dot indication work is processing in those of woodworking environments, not simply relying on any prior dot positioning works, it should be an efficient job to apply a highly intense and bright beam emitted tool of a 660nm red laser diode module. Owing to its extremely high visibility red laser light emission, equipped with an import 660nm red laser diode and a qualified optic lens inside a durable metal housing tube, it can maintain highly clear red laser dot projection under flying sawdust and complex lighting, unaffected by wood color or workshop dust. When red dot laser alignment gets proper installation or integration into proper wood processing equipment, it enables easy reaching, noncontact and high precision red dot generation onto all wood surfaces conveniently.

Basically 660nm red laser diode module applies a qualified glass coated lens and an import 660nm red laser diode, available with wide range output power of 5mW to 500mW, it is not only projecting highly visible and bright red laser light and red reference dot for close distance and inner room woodworking environments, but also making good dot alignment result within long extending distance of 25 meters and multiple lighting occasions as well. Being made with an inner metal heat sink cooling system inside a durable anodized aluminum alloy housing tube design, red dot laser alignment keeps work with superior heat dissipation and increasing stability red dot generation as long as 10 hours per day. It is always working well as an accessory part of other machine or device, unaffected by overheating, over current impact as well.

Whenever 660nm red laser diode module projects high transmittance and high energy density red light, cooperated with adjustable focus optic lens design in front of laser beam aperture, it assures highly concentrated red laser light generation, and efficient conversion of millimeter level dot positioning accuracy. It can accurately lock the processing point, solving the problems of ink line smudging and tape measure measurement errors, reducing wood scrap due to positioning deviations and lowering processing costs. According to the real wood processing distance and lighting occasion, only if red dot laser alignment gets correct use of output power and operating voltage electric power source, it enables quick align of the processing position, reducing labor input.

Featured by ultra compact size and durable structure design, 660nm red laser diode module allows direct installation on various woodworking machines, such as saws, drills, carving machines, edge banding machines etc. It enables convenient integration and allows for easy upgrade to older equipment. Featured by dustproof, moisture-proof, and resistant to high and low temperatures, this red alignment laser is able to withstand slight vibrations from woodworking equipment, with a service life exceeding 10,000 hours, eliminating the need for frequent replacement and maintenance.

Applications in woodworking fields:

Wood Cutting Positioning: Adding a 660nm red diode laser module to table saws, panel saws, and sliding table saws projects a precise red dot to mark the cutting baseline/point, replacing traditional measuring tapes and ink lines. This directly aligns the wood cutting position, preventing offset.

Wood Hole Alignment: Compatible with woodworking drills and engraving machines, the red dot marks the hole center or drilling path, precisely matching the position of hardware mounting holes and splicing holes, eliminating wood scrap caused by drilling deviations.

Wood Splicing Alignment:660nm red alignment laser is used for solid wood splicing and panel furniture assembly. Red dots mark the splicing reference surface and mating points, ensuring uniform gaps and precise angles when splicing multiple pieces of wood, improving assembly flatness.

Dimensional Calibration Marks: Used on sanders and edge banding machines, red dots mark the dimensional boundaries of the wood and the start/end points of edge banding, calibrating processing dimensions and preventing edge banding misalignment and sanding exceeding boundaries.

Carving/Grooving Guidance: Used with wood carving and grooving machines, red laser dots project the carving outline reference point and grooving depth/width reference point, assisting operators in precisely controlling the processing trajectory and ensuring consistency in carving and grooving.
