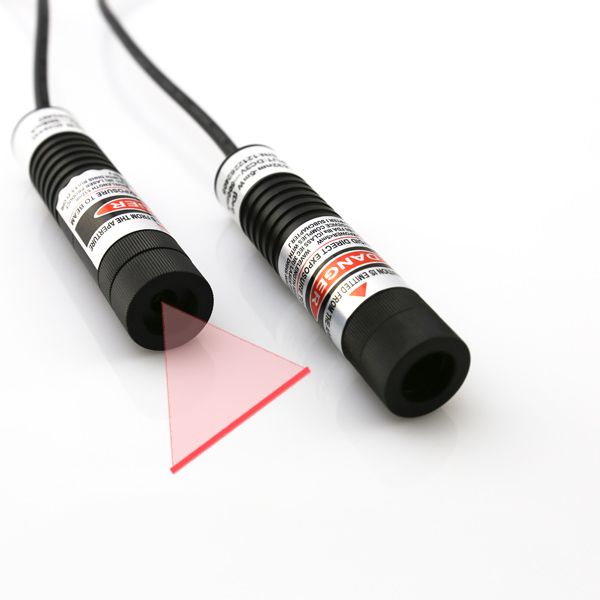

In any type of ultra clear and precise line indication at a longer work distance than formal hand reaching, on consideration of ultra clear and fine line indication for all textile industrial processing works, it would be an efficient job for factory workers to operate a highly bright beam emitted tool of a 635nm red line laser module. It generates highly bright, fine and clear red reference line from a qualified glass coated lens. Cooperated with an AC/DC adapter, not relying on manual labor force input or limited by operating distance or other complex working environments etc, this accessory part of a laser line generator just enables quite easy installation or integration with textile processing device, and makes ultra clear, fine and precise red line indication for multiple garment cloth processing works constantly.

Cooperated with an AC/DC adapter, the wavelength of 635nm applied device of a red line laser module is projecting highly sensitive color and easily absorbed red laser light from an import 635nm red laser diode within 5mW to 100mW and high power up to 150mW to 500mW. It emits a highly straight and high linear quality red reference line within 0.5 meter to 6 meters length, creating a sharp contrast on textile surfaces. Even in complex lighting conditions, the laser marking can be clearly seen, facilitating quick and accurate positioning. Being made with a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube design, this red laser line generator still enables quite easy installation or integration, quick reaching of red reference line projection onto any processing garment cloths conveniently.

Inside the compact and durable metal housing tube, this 635nm red line laser module applies a qualified glass coated lens within 10 to 110 degree fan angles and special use of adjustable focus optic lens in front of laser beam aperture. This low divergence made laser gets ultra high fineness red line projection within 0.5 meter to 6 meters length in use. In addition, according to its proper adjustment of both of red laser line fineness and line emitting direction, this red laser line generator can make quite satisfied line positioning results for multiple garment cloths processing works. It can make quite satisfied line positioning results for garment cutting, sewing and garment pattern design work etc.

Being made with ultra compact size tube design, this ultra compact structure made 635nm red line laser module can be conveniently installed in various locations on textile equipment, such as on the head of a cloth cutting machine or above a workbench. Power-on operation is straightforward, and commissioning is simple. It maintains highly stable and clear red line indication, offering excellent wear and corrosion resistance and heat dissipation, making it suitable for the working environment of a textile workshop.

General applications in textile industry fields:

Cloth Cutting Assist Marking: When cutting fabric on a fabric cutting machine, a clear 635nm red line laser module is projected as a reference line, ensuring straightness and accuracy, and preventing deviations.

Garment Hem Positioning: Used in garment hemming processes, it helps workers accurately fold fabric to the designated location, ensuring a neat and uniform hem.

Garment Laser Positioning: During the garment production process, it locates areas requiring sewing, embroidery, buttoning, and other processing, improving accuracy and consistency.

Textile Printing and Dyeing Laser Alignment: During the printing and dyeing process, red alignment laser helps align fabric edges or patterns, ensuring accurate placement of printed patterns and improving printing quality.
