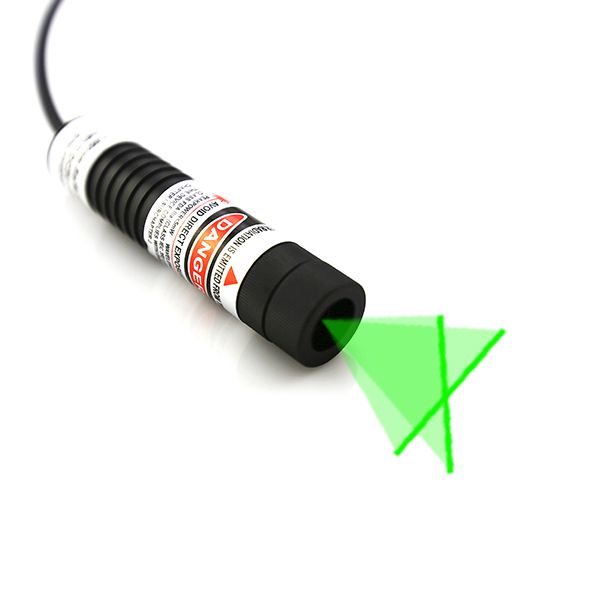

Cooperated with advanced 532nm green DPSS laser tech and a qualified optic lens, it is manufactured into a professional cross line measuring tool of a 532nm green cross line laser module. In those of industrial processing work fields, based on its high brightness and highly fine green cross line projection at various work distances, it has just substituted by those of manual or mechanical cross line measuring devices. On condition that cross laser alignment tool gets constant electric power source supply and proper integration with industrial device or equipment, it is able to make sure of highly precise, clear and bright two perpendicular green lines generations at long extending distances and multiple lighting occasions conveniently.

What is the major use of 532nm green cross line laser module in industrial processing fields?

Positioning and alignment.

Cutting processing: 532nm green cross line laser module projects highly clear and bright two perpendicular green lines with accurate 90 degrees which provides accurate positioning reference for the cutting processing works of wood, stone, metal and other materials. After its proper installation and integration with cutting device, the cutting start position and cutting direction can be quickly and accurately determined, and high-precision positioning can also be achieved for cutting tasks of complex shapes.

Welding assembly: In the welding process, especially for high-precision welding of parts, the green cross line laser module can be used for positioning and alignment of welds. It can help the welding robot or operator accurately position the welding head to the weld position, ensure the accuracy and consistency of welding, improve welding quality, and reduce welding defects. This positioning function is particularly important in scenarios such as welding of tiny parts in electronic equipment manufacturing and body welding in automobile manufacturing.

Machine tool processing: In the process of machine tool processing, such as milling machines, drilling machines and other equipment, the green cross line laser module can be used for positioning and clamping workpieces. By projecting green cross-lines onto the surface of the workpiece, the operator can quickly and accurately install the workpiece in the correct position of the machine tool, and can monitor whether the workpiece is displaced at any time according to the position of the cross-line during the processing process to ensure the accuracy and quality of the processing.

Calibration and measurement:

Equipment calibration: For some large industrial equipment, such as printing presses, textile machinery, etc., accurate calibration is required during installation and commissioning. The 532nm green cross line laser module can be used as a calibration benchmark. By projecting green vertical and horizontal lines onto the key parts of the equipment, the operator can adjust the various components of the equipment according to the position of the cross-line to meet the specified accuracy requirements. For example, in the commissioning of a printing press, the position of components such as the plate cylinder and the impression cylinder can be accurately calibrated using the green cross-line laser module to ensure the registration accuracy of printing.

Dimension measurement: In industrial production, it is often necessary to measure and detect the dimensions of parts. The green alignment laser can project a green cross-line onto the surface of the object being measured. By measuring the distance between the cross-line and the edge or specific position of the object, the size and position deviation of the object can be accurately determined. This non-contact measurement method has the advantages of high precision, high speed, and no damage to the object being measured. It is suitable for measuring parts of various shapes and materials, such as automotive parts, machined parts, etc. Dimension detection.
