Types

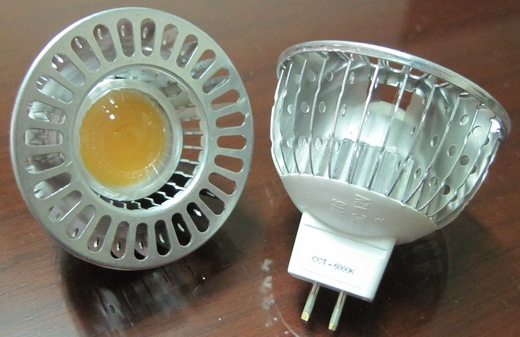

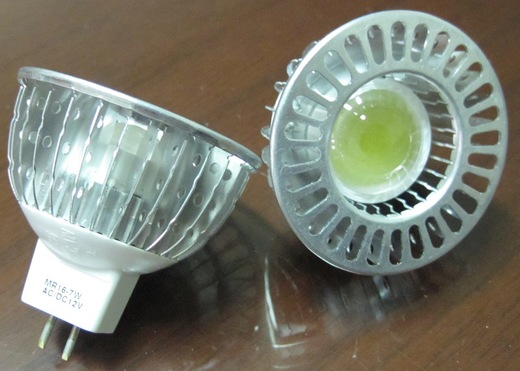

MR16-8W

LED Chips

18pcs ( Taiwan )

LED Light Source

Chip-on-Board

Outer Casing

Aluminum heatsink fins

Beam Angle

90 degree

Operating Life-time

Ø 30,000 hours

Power

8W

Weight

30g +/- 2g

Input Voltage

AC/DC 12V

Size

49mm x 48mm

Operating Temperature

-40 degree – 70 degree

Usage

Indoor

CCT

2700K

6000K

Luminous Flux

Ø 420lm

Ø 500lm

Lux @ 1m

Ø 220lux

Ø 250lux

Lux @ 2m

Ø 60lux

Ø 80lux

Product: MR16 External LED DC Drivers

Types

8W Driver

AC Input

100 – 240 Vac

DC Output

3 – 14Vdc

Constant Current

700mA ± 10%

CCT

2700K

6000K

Luminous Flux

Ø 450lm

Ø 550lm

Lux @ 1m

Ø 230lux

Ø 300lux

Lux @ 2m

Ø 70lux

Ø 90lux
