俄羅斯購買中國054A型飛彈護衛艦?Type 054A frigate
2015/04/29 23:49
瀏覽1,086
迴響0
推薦4
引用0



俄羅斯軍事評論員亞歷山大‧瑪茲格沃伊近來發表題為「探討俄羅斯採購中國054A型護衛艦可能性」文章,認為俄方應向中國採購054A。近年來054A型護衛艦建造的速度和數量在中國海軍大中型水面艦艇上可謂是獨樹一幟,它之所以備受關注,主要還是因為該艦自身的動力、護航能力、防禦能力等較強。俄羅斯海軍自主設計建造的現代化隱身護衛艦有11356M型、20350型和20380型。這三型艦艇均有美中不足。



054A型飛彈護衛艦(北約代號:江凱II級)是中國人民解放軍海軍自2008年起陸續裝備的主力飛彈護衛艦,是基於054型飛彈護衛艦的改進型號,長134米,高35米,最大寬度16米,滿載排水量4000餘噸,採用全柴動力,四機雙槳、雙舵,其最大航速不小於27節,巡航速度18節,續航力4000海里,自給力l5天,抗風力大於12級,可在除極區外任何海區均可安全航行。

054A型飛彈護衛艦可單獨或者協同海軍其他兵力攻擊敵水面艦艇潛艇,具有較強的遠程警戒和防空作戰能力。此型飛彈護衛艦主要擔負編隊反潛或編隊指揮任務,此外,亦可協同編隊防空並為登陸作戰提供火力支援、執行海上巡邏、警戒、護航等任務。至2015年三月底,中國人民解放軍海軍共裝備18艘054A型飛彈護衛艦,另有2艘海試,2艘下水舾裝,2艘船台建造中。初步列裝計劃是,將三大艦隊下轄的六支驅逐艦支隊,每支隊配備4艘054/054A型護衛艦;未來航母編隊/大型兩棲攻擊艦編隊的護衛任務,預計將由改進型的054B型護衛艦擔任。



 054A型護衛艦裝備了32枚可垂直發射的「海紅旗-16」防空導彈,還可裝備8枚具備垂直發射能力的「鷹擊-83」型反艦導彈;在雷達跟蹤系統方面,該艦可在260公里範圍內實現360度全域監控,能同時跟蹤100個目標,並選擇打擊其中10個最具危險的目標。



作為中國最新型的護衛艦,054A裝備了32枚可垂直發射的“海紅旗-16”防空導彈,還可以裝備8枚可垂直發射的“鷹擊-83”型反艦導彈;在雷達跟蹤系統方面,054A可以在260公里範圍內,實現360度全域監控,能夠同時跟蹤100個目標,並選擇打擊其中10個最具危險的目標。這意味著054A已經具備區域防空能力,可以為中國的航母編隊提供保護。





「054A型導彈護衛艦。」的圖片搜尋結果「054A型導彈護衛艦。」的圖片搜尋結果「054A型導彈護衛艦。」的圖片搜尋結果「054A型導彈護衛艦。」的圖片搜尋結果「054A型導彈護衛艦。」的圖片搜尋結果

The Type 054A (NATO codename Jiangkai II) frigate is a Chinese multi-role warship class, the first of which entered service with the People's Liberation Army Navy Surface Force in 2007. The class is planned to comprise 24+ vessels. As of 2015, 18 are in service, 4 are fitting out, and 2 are under construction. It is a development of the Type 054 frigate, using the same hull but with improved sensors and weapons.

The Type 054A was first revealed while under construction at the Guangzhou-based Huangpu Shipyard in 2005.

 「054A型導彈護衛艦。」的圖片搜尋結果



Type 054A frigate Yulin (569)
Class overview
Builders: Hudong-Zhonghua Shipyard
Huangpu Shipyard
Operators: People's Liberation Army Navy Surface Force
Preceded by: Type 054 frigate
Succeeded by: Type 054A+ frigate
Cost: ¥ 1.58 billion
Building: 6
Planned: 24
Active: 18
General characteristics
Type: Frigate
Displacement: 4,053 tonnes (full)(CCTV report)
Length: 134.1 m (440 ft)(CCTV report)
Beam: 16 m (52 ft) (CCTV report)
Propulsion: CODAD, 4 x Shaanxi 16 PA6 STC diesels, 5700 kW (7600+ hp @ 1084 rpm) each
Speed: 27 kn estimated
Range: 8025 nautical miles estimated
Complement: 165
Sensors and
processing systems:
Type 382 Radar (Upgraded from Type 381 Radar "Sea Eagle S/C") 3D air/surface search radar

Type 344 Radar (Mineral-ME Band Stand) OTH target acquisition and SSM fire control radar
4 x Type 345 Radar(MR-90 Front Dome) SAM fire control radars
MR-36A surface search radar, I-band
Type 347G 76 mm gun fire control radar
2 x Racal RM-1290 navigation radars, I-band
MGK-335 medium frequency active/passive sonar system
ZKJ-4B/6 (developed from Thomson-CSF TAVITAC) combat data system
HN-900 Data link (Chinese equivalent of Link 11A/B, to be upgraded)
SNTI-240 SATCOM

AKD5000S Ku band SATCOM
Electronic warfare
and decoys:
Type 922-1 radar warning receiver
HZ-100 ECM & ELINT system
Kashtan-3 missile jamming system

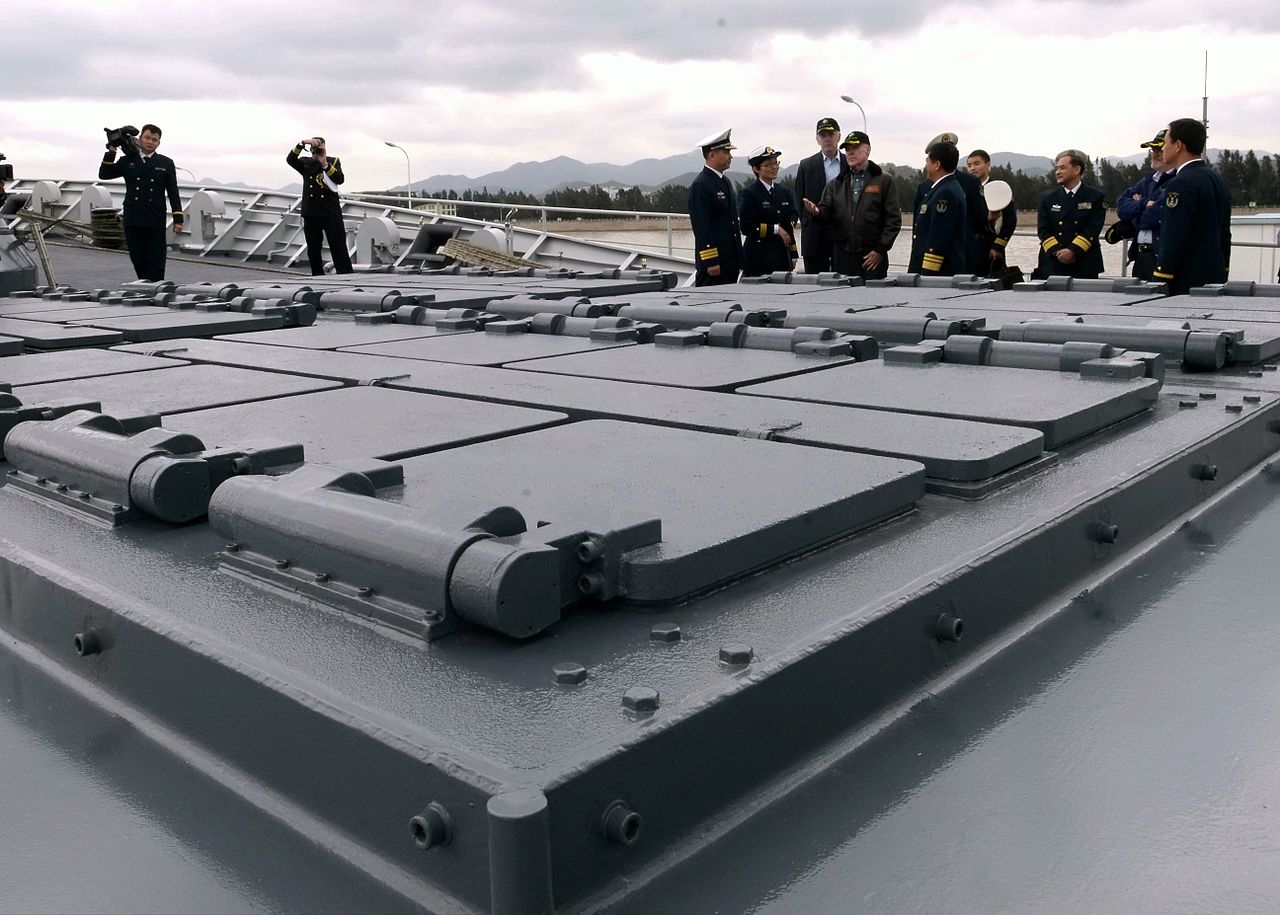

Armament: 1 x32-cell VLS HQ-16 SAM / anti submarine rocket launcher
2 x 4 C-803 anti-ship / land attack cruise missiles
1 x PJ26 76 mm dual purpose gun
2 x Type 730 7-barrel 30 mm CIWS guns
2 x 3 324mm YU-7 ASW torpedo launchers
2 x 6 Type 87 240mm anti-submarine rocket launcher (36 rockets carried)
2 x Type 726-4 18-tube decoy rocket
