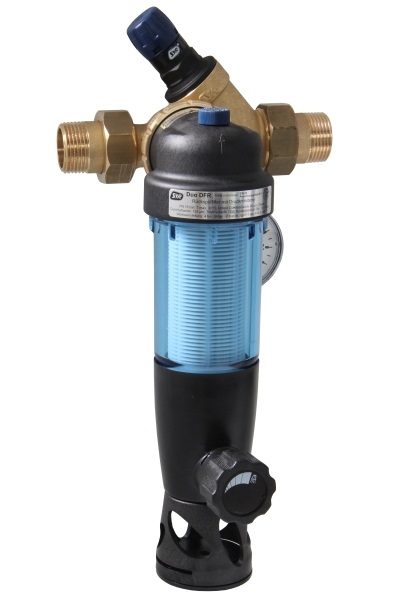

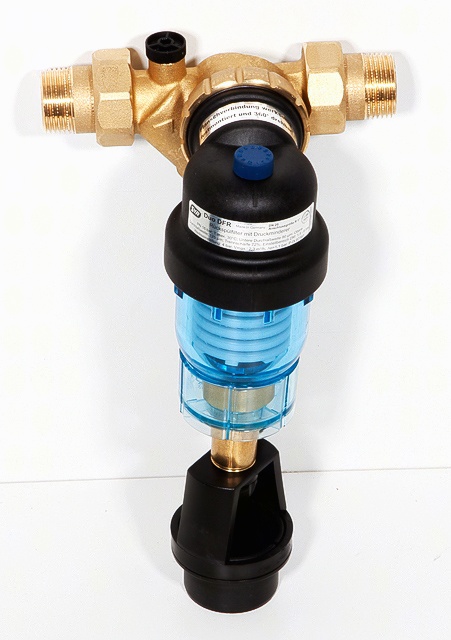

減壓閥組 SYR Duo DFR, DN 20, G 1" 2314.25.000
Field of application：
The Duo DFR is the starter model of the SYR filter programme. It is designed as filtering valve for potable water installations, which is to be mounted with the fully rotatable integrated connection flange. The Duo DFR functions in any mounting position. Its very compact construction form also allows to protect single appliances (dish washers, water heaters, etc.).
應用領域：
這款DuoDFR是德國SYR公司的手工反洗過濾減壓閥入門機型，被設計用來過濾自來水，擁有自由旋轉整合功能之緣體，可安裝於任何地點。小巧玲瓏安裝造型可以讓您保護價格不菲之單一家電（例如：洗碗機或熱水器等等）
Design：
The manual backwash filter Duo DFR is available in the connection sizes DN 20 - DN 25. The integral pressure reducing valve protects the installation against overpressure and water hammers. The cascade-shaped filter insert is made of synthetic material.
設計：
這款SYR德國DuoDFR手工反洗過濾減壓閥可連接DN20-DN25口徑，這整合式的減壓閥可以對抗水壓過大或水錘作用。噴流過濾管採用特殊合金製造。
Materials：
The filter cap is made of shock-resistant synthetic material and the filter insert of synthetic material. The ring seals are made of asbestos-free fibre. All materials used are state-of-the-art. The synthetic and elastomeric parts getting into contact with water designed for human consumption are approved by the German Public Health Office (KTW).
材質：
這款濾心容器採用耐沖擊合成材料製造，而濾心插口也採用特殊合成材料製造。密封環採用不含石棉纖維材質製造。材質取捨顯現工藝極致。這款自來水專用高彈性合成材料榮獲德國公眾健康局的認證（KTW）。

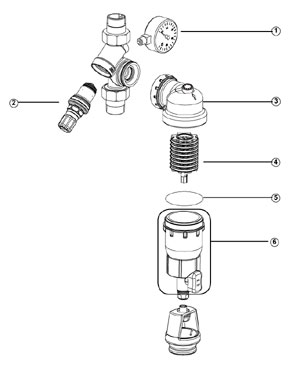

Accessories：
1 Manometer 0-10 bar
2 Pressure reducer cartridge
3 Valve body
4 Filter
5 O-Ring
6 Filter cap
細部零件介紹：
1 壓力表
2 減壓閥
3 閥門
4 濾心
5 密封環
6 濾心蓋
Installation：
It is highly recommended to install filters to protect potable water installations against corrosion. When used at the domestic point of entry, the Duo DFR filter should be installed directly behind the water metering device and be readily accessible.Thoroughly flush the pipe prior to installation. Use filtered water from the first onset of the potable water installation. The main axis of the filter has to be in vertical position. Install the filter under consideration of the direction of flow (arrow on the body) in the pipework without applying stresses.
安裝：
積極建議您採用這款自來水專用SYR德國DuoDFR手工反洗過濾減壓閥對抗水管鏽蝕，當安裝於家用自來水進水幹管時，請直接裝設於水表後方掬手可得的地方。安裝前請使用濾過的水徹底沖洗進水幹管，安裝時請注意in/out水流方向，過濾器主軸需保持垂直。
Technical data：
Operating pressure: min. 2 bar, max. 16 bar
Operating temperature: max. 30 °C
Mounting position: any, main axis of filter vertical
Fluid: potable water
Mesh width: lower: 90 µm, upper: 125 µm
Flow rate: DN 20 + DN 25: 2.3 m³/h at 1.1 bar Δp
技術參數：
工作水壓：最低2bar 最高16bar
工作溫度：最高攝氏30度
安裝地點：任何可以保持垂直角度的地方
適用水源：自來水
孔徑寬度：最小90µm 最大125µm
運作流速：DN 20 + DN 25: 2.3 m³/h at 1.1 bar Δp
Maintenance：
A maintenance indicator positioned on top of the filter indicates when service is due. The filter should be backwashed every two months at the latest. Servicing the Duo DFR requires no special tools. To service the filter, open the ball valve and turn the lower part of the filter 2 to 3 times to the left or to right. Close the ball valve again. Even during backwashing, the device continues to supply filtered water into the potable water system.
保養：
這款SYR德國手工反洗過濾減壓閥頂部有調整指針可明示上次保養時間。最晚每兩個月要手工反洗一次。操作時不需要特殊工具，直接打開球閥，然後將過濾器下半部左右轉動兩至三次，最後關上球閥。反洗操作期間，自來水仍能照常供應。
